With the addition of a high level of chromium, Super-Duplex alloys are steel grades that offer outstanding resistance to various solutions including acid chlorides, acids, caustic solutions and other environments. Because the Super Duplex Pipe Fittings are able to function in a wide ph range, its use is well suited for applications in several industries such as the chemical, pulp and paper industries as well as petrochemical. Often these alloys substitute the resilient nickel-based alloys, or 300 series stainless steel or even high nickel super austenitic steels. The chemical composition of UNS S32750/ S32760 Buttweld Fittings wherein the basic makeup includes a high content of elements like chromium, nickel and molybdenum. Together, these elements make for a markedly improved Super Duplex Elbow Fittings where the alloy is not prone to get decayed by either intergranular corrosion or pitting corrosion. Additions of nitrogen in the alloy promote structural hardening of the Super Duplex Stainless Steel Pipe Fittings by interstitial solid solution mechanism. During this process, nitrogen improves the yield strength and ultimate strength values without any significant loss on its toughness characteristics. Furthermore, the two-phase microstructure as seen in the Super Duplex 2507 Pipe Fittings guarantees an increase in resistance to pitting and SCC or stress related corrosion cracking as opposed to the more traditional stainless steels grades. The corrosion resistance of Super Duplex Fittings extends to the highly corrosive halogen containing solutions including chlorine and bromine.

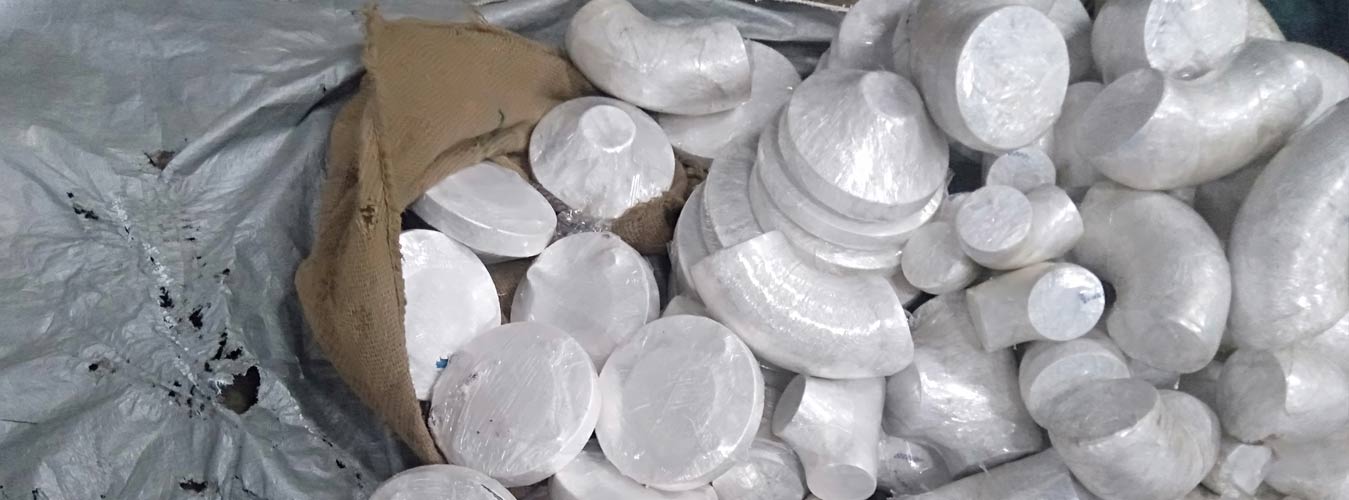

Super Duplex Pipe Fittings manufacturers in India
Super Duplex Pipe Fittings
Super Duplex Stainless Steel Fittings
ASME B16.9 Super Duplex 2507 Pipe Fittings
UNS S32750 SA815M Super Duplex Forged Fittings
Werkstoff No 1.4410 Super Duplex Buttweld Fittings
Super Duplex Stainless Steel Fittings Specification
| Specification : | ASTM A815 Super Duplex Fittings |
|---|---|
| Manufacturing process | Press, Forge, Push, Cast, etc. |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| size | Seamless ButtWeld Fittings: 1/2 - 10 inch Welded Butt Weld Fittings: 1/2" - 48" |
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
| Specialized manufacturer of | 45º Elbows, Tees, Crosses, Stub End, Pipe Bend, Reducers, 90º Elbows, Pipe Cap |
| Type | DN15-DN1200 |
| Connection | Welding |
| Origin & Mills | Indian, Korean, Russian, Japanese, European |
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
Werkstoff No 1.4410 Fittings Dimension Table
| Nominal Pipe Size |
OD | 90° Elbow | 45° Elbow | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
|
(inch.)
|
LR
|
SR
|
LR
|
LR
|
||||
|
(millimeter)
|
(inch.)
|
Center to Face
(inch.) |
Center to Face
(inch.) |
Center to Face
(inch.) |
Radius
(inch.) |
Center to Center
(inch.) |
Back to face
(inch.) |
|
|
1/2
|
21.3
|
0.840
|
1 1/2
|
–
|
5/8
|
2
|
1 7/8
|
|
|
3/4
|
26.7
|
1.050
|
1 1/8
|
–
|
7/16
|
2 1/4
|
1 11/16
|
|
|
1
|
33.4
|
1.315
|
1 1/2
|
1
|
7/8
|
3
|
2 3/16
|
|
|
1 1/4
|
42.2
|
1.660
|
1 7/8
|
1 1/4
|
1
|
3 3/4
|
2 3/4
|
|
|
1 1/2
|
48.3
|
1.900
|
2 1/4
|
1 1/2
|
1 1/8
|
3
|
4 1/2
|
3 1/4
|
|
2
|
60.3
|
2.375
|
3
|
2
|
1 3/8
|
4
|
6
|
4 3/16
|
|
2 1/2
|
73.0
|
2.875
|
3 3/4
|
2 1/2
|
1 3/4
|
5
|
7 1/2
|
5 3/16
|
|
3
|
88.9
|
3.500
|
4 1/2
|
3
|
2
|
6
|
9
|
6 1/4
|
|
3 1/2
|
101.6
|
4.000
|
5 1/4
|
3 1/2
|
2 1/4
|
7
|
10 1/2
|
7 1/4
|
|
4
|
114.3
|
4.500
|
6
|
4
|
2 1/2
|
8
|
12
|
8 1/4
|
|
5
|
141.3
|
5.563
|
7 1/2
|
5
|
3 1/8
|
10
|
15
|
10 5/16
|
|
6
|
168.3
|
6.625
|
9
|
6
|
3 3/4
|
12
|
18
|
12 5/16
|
|
8
|
219.1
|
8.625
|
12
|
8
|
5
|
12
|
24
|
16 5/16
|
|
10
|
273.1
|
10.750
|
15
|
10
|
6 1/4
|
15
|
30
|
20 3/8
|
|
12
|
323.9
|
12.750
|
18
|
12
|
7 1/2
|
18
|
36
|
24 3/8
|
Chemical Structure Of SA815M Super Duplex Forged Fittings And Mechanical Properties Data Sheet Of ANSI B16.9 Super Duplex Buttweld Fittings.
Super Duplex 2507 Fittings Chemical Structure
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| Super Duplex S32750 | 0.030 maxi. | 2.00 maxi. | 1.00 maxi. | 0.030 maxi. | 0.020 maxi. | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
Most Reliable UNS S32750 Super Duplex Compression Fittings Manufacturers In Mumbai, India, Buy Directly From Alloy 2507 Super Duplex Fittings Suppliers, Great Price For Bulk Werkstoff No 1.4410 Super Duplex Hose Fittings For Piping Connection.
UNS S32750 Pipe Fittings Mechanical Behavior
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|---|
| Super Duplex S32750 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Refer S32750 Super Duplex Tee Weight Chart Table, 1.4410 Super Duplex Pipe Elbow Stockist in Mumbai, 2507 Super Duplex Stub Cap Equivalent.
SA815 Super Duplex Forged Fittings Weight Table
| Normal Pipe Size | LBS | Kilogram |
| 1/2 | 0.25 | 0.11 |
| 3/4 | 0.25 | 0.11 |
| 1 | 0.5 | 0.23 |
| 1¼ | 0.9 | 0.41 |
| 1½ | 1.15 | 0.52 |
| 2 | 2.2 | 1 |
| 2½ | 4 | 1.81 |
| 3 | 6.5 | 2.95 |
| 3½ | 8.35 | 3.79 |
| 4 | 13.5 | 6.12 |
| 5 | 22 | 9.98 |
| 6 | 35 | 15.88 |
| 8 | 71 | 32.21 |
| 10 | 107 | 48.53 |
| 12 | 160 | 72.57 |
| 14 | 205 | 92.99 |
| 16 | 276 | 125.19 |
| 18 | 340 | 154.22 |
| 20 | 420 | 190.51 |
| 22 | 520 | 235.87 |
| 24 | 600 | 272.16 |
| 26 | 729 | 330.67 |
| 30 | 975 | 442.25 |
| 36 | 1412 | 640.47 |
Equivalent Of Super Duplex Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
Alloy 2507 Super Duplex Seamless Pipe Fittings Pressure Rating Class, Get Free Quote Super Duplex Tube Fittings, RSA Provide 2507 Super Duplex Hydraulic Fittings In House Cutting.
S32750 Super Duplex Elbow Pressure Rating
